Remote Printer Workflow Guide

This guide details the end-to-end execution flow of the lh-print utility, from the initial setup and browser trigger to the physical output on a barcode printer.

1. Initial Setup & Installation

Based on the official training documentation, follow these steps to prepare the local environment:

A. Windows Printer Configuration

Drivers: Install the official drivers for your thermal printer (TSC, Zebra, TVS, etc.).

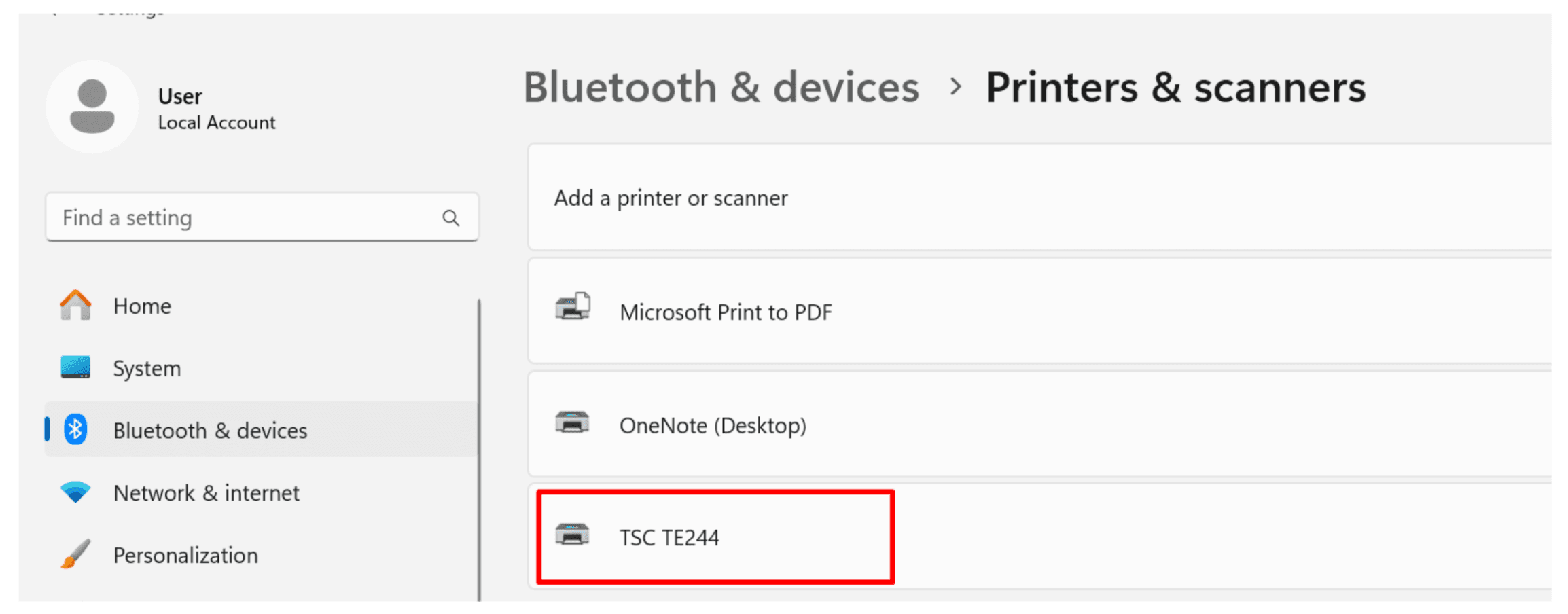

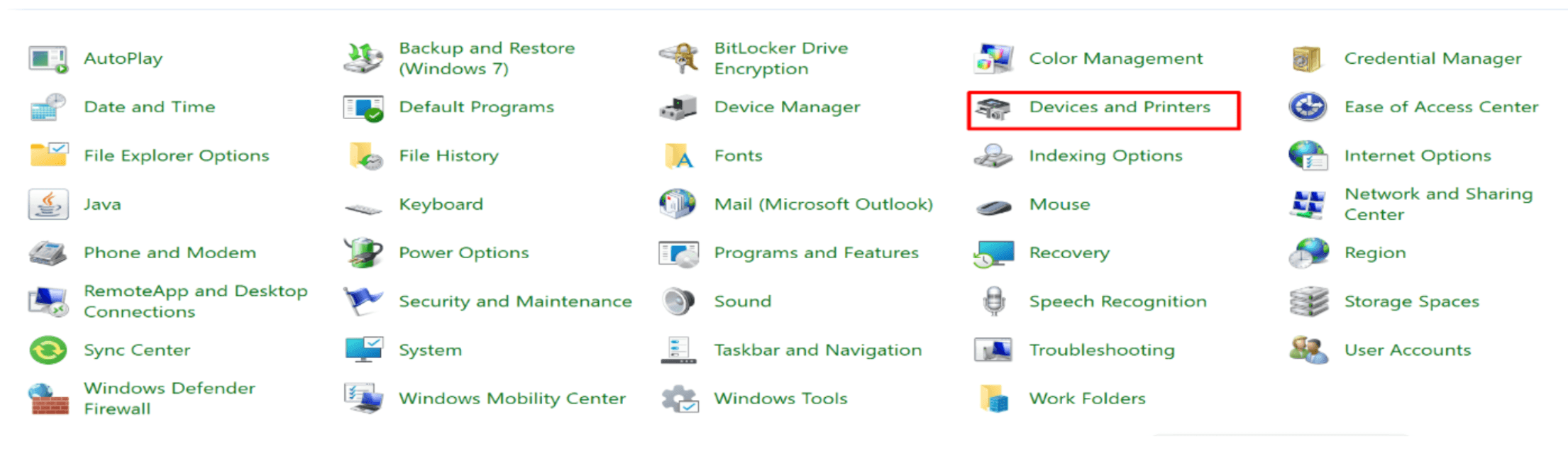

Sharing: Go to Control Panel -> Devices and Printers -> Bluetooth and Devices -> Printers & Scanners -> ** Select Printer Name **

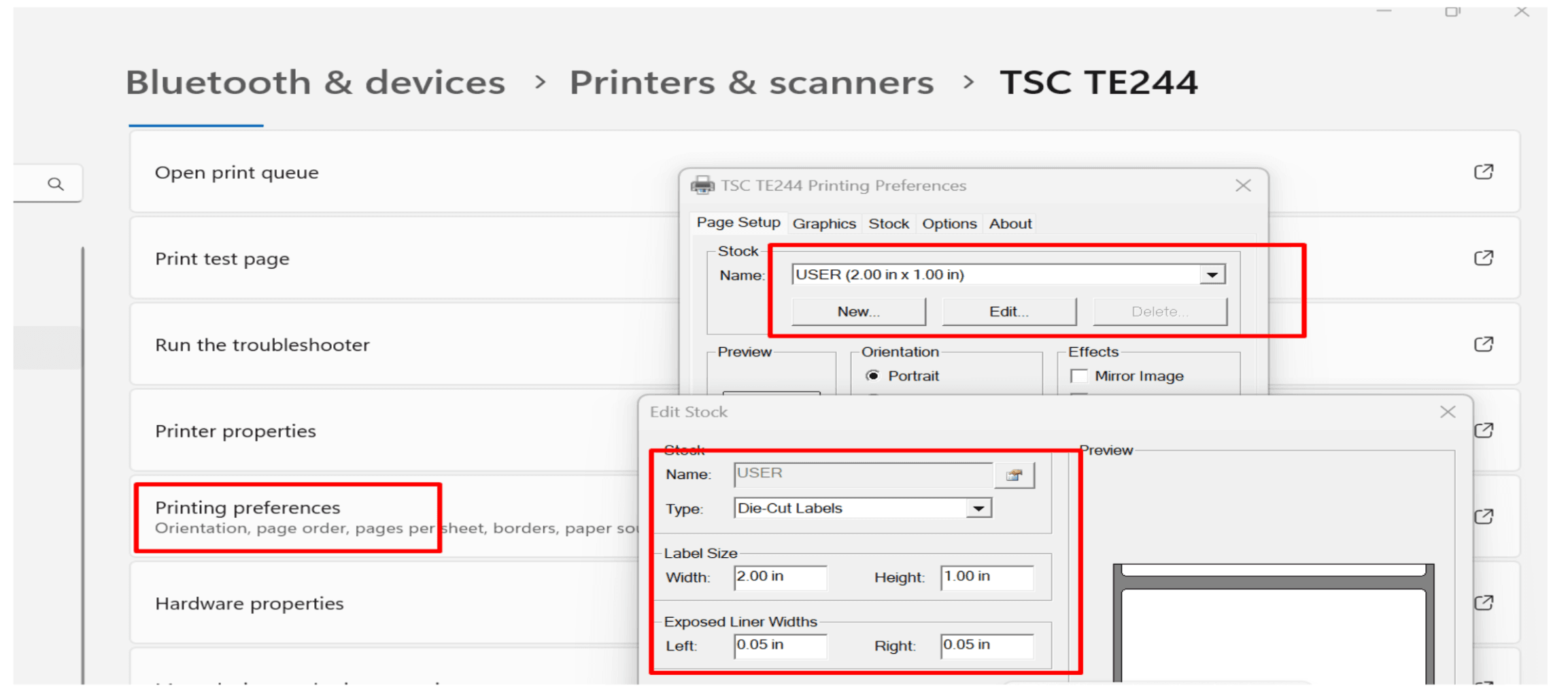

Calibration: Go to "Printing Preferences" -> "Page Setup". Set the stock size to match your labels (e.g., 2.00" x 1.00").

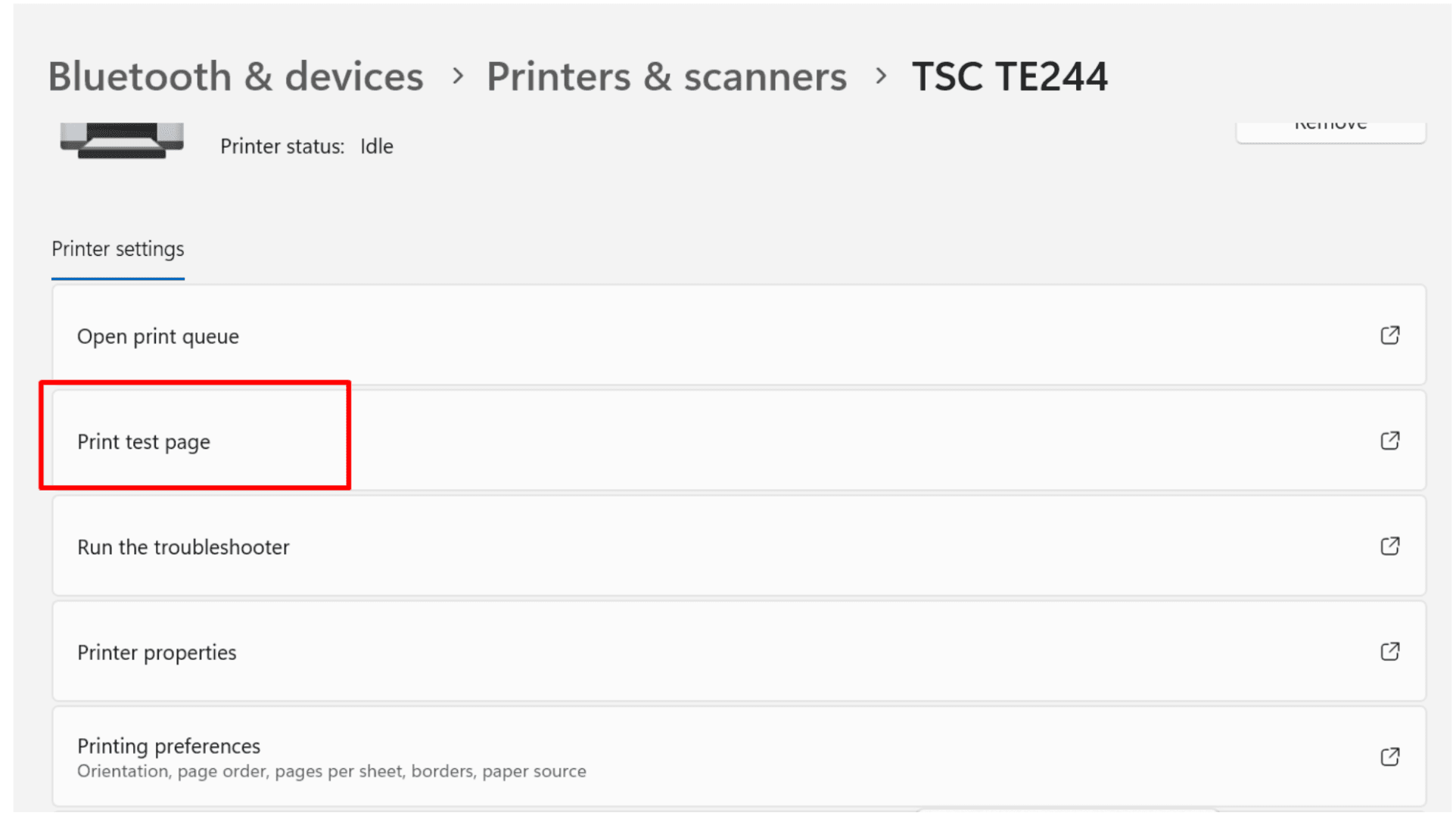

Test Print: Use the "Print Test Page" button to ensure the hardware is communicating correctly with Windows.

B. Utility Deployment

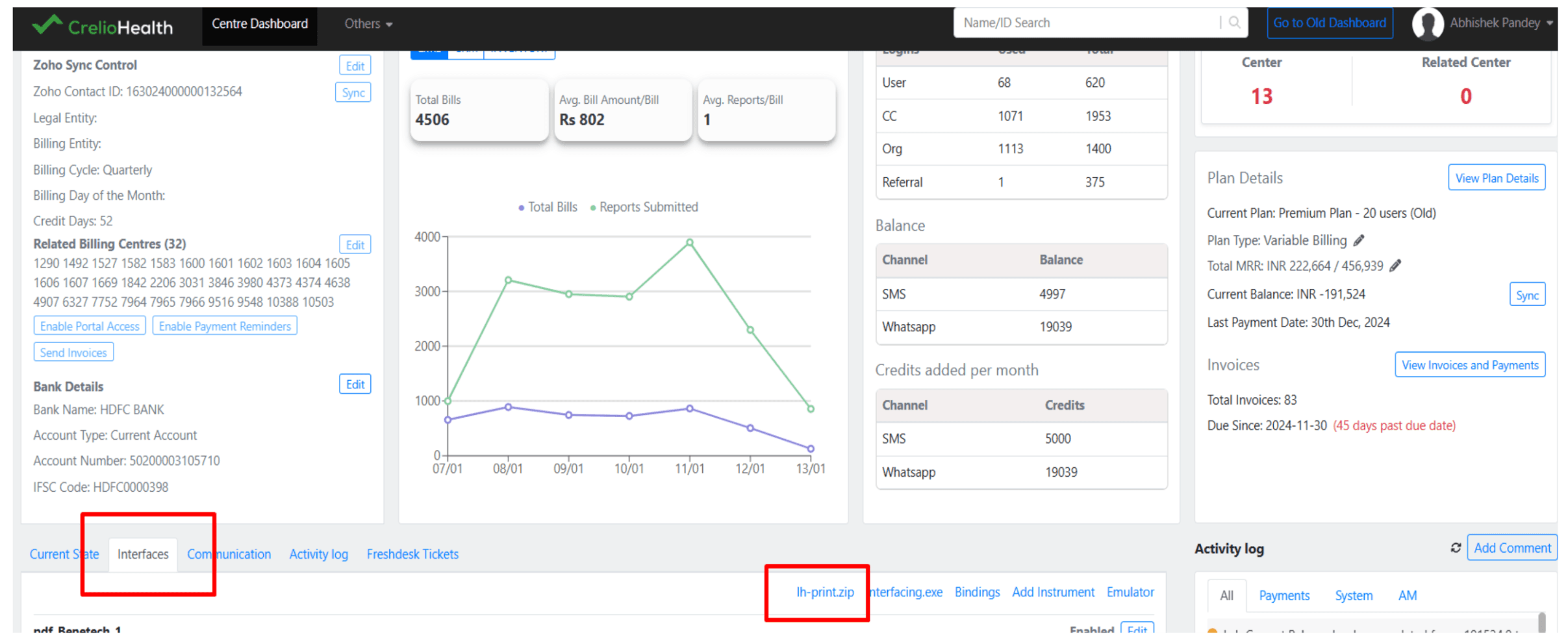

Download: Go to the CrelioHealth Support Dashboard -> Interfaces and download lh-print

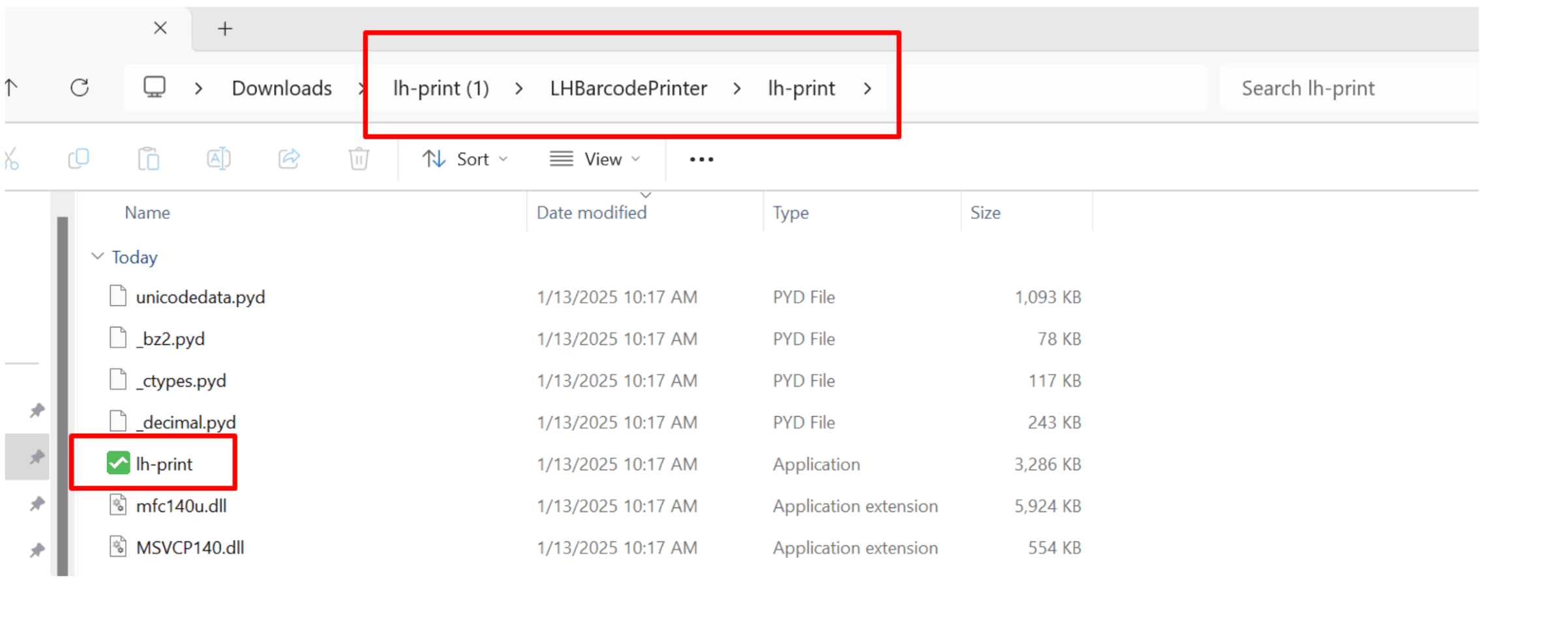

Extract: Extract the zip file
Initialization: Double-click lh-print.exe. This will generate:
- config.json: The main configuration file.
- lh-print.reg: Registry registration file based on the current path.
- logs/ and templates/ folders.

C. Protocol Registration

To allow browsers to trigger local printing, merge the registry file:

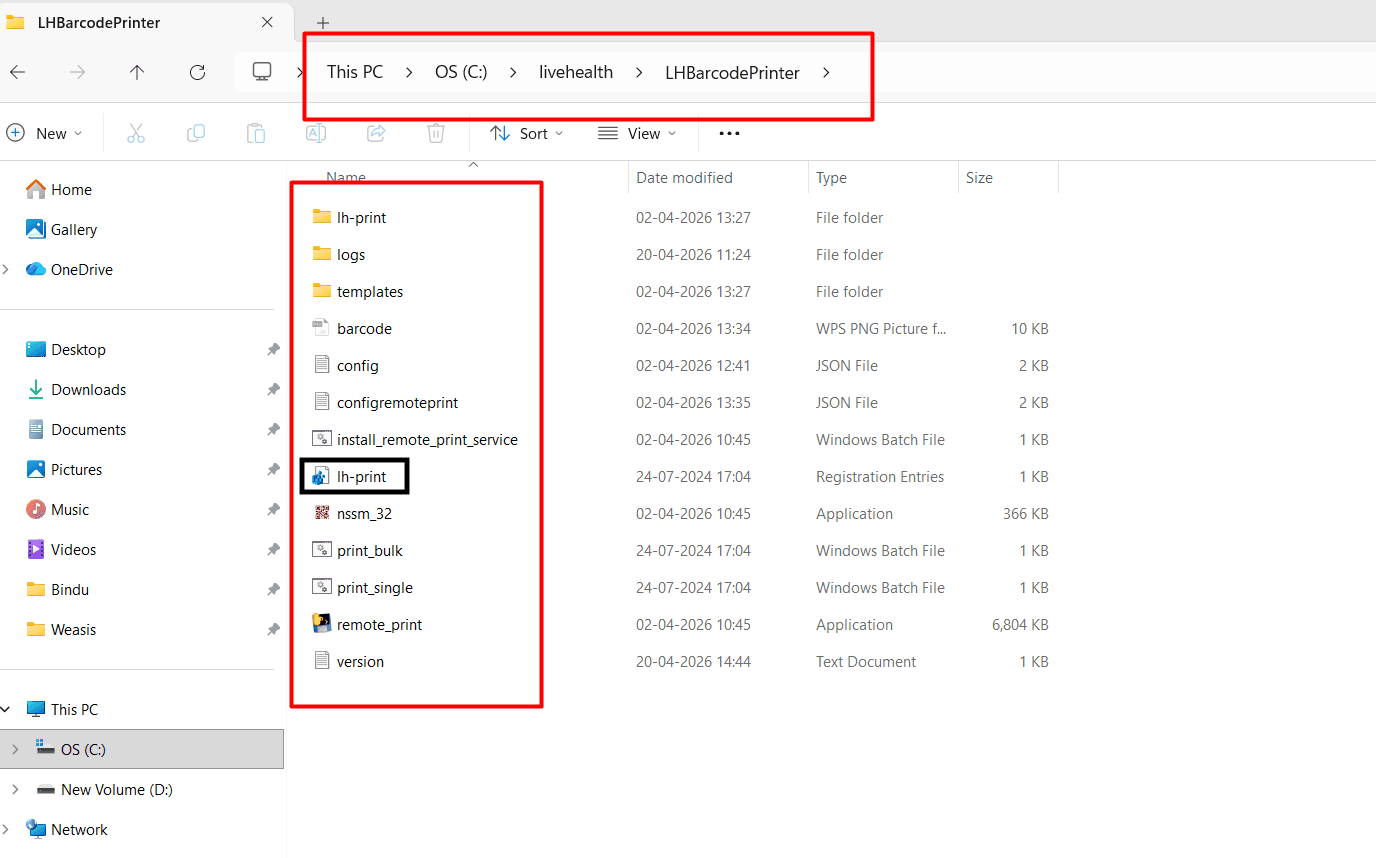

Double-click C:\livehealth\LHBarcodePrinter\lh-print.reg.
Confirm the merge to register the lhprint:// protocol.

D. Verification Scripts

The application automatically creates two test scripts in the root directory:

print_single.bat: Triggers a test print for a single mock patient.
print_bulk.bat: Triggers a test print for multiple mock samples.

Run these scripts and check logs/info.log to confirm the application parsed the data and executed the move command correctly.

E. Service Activation

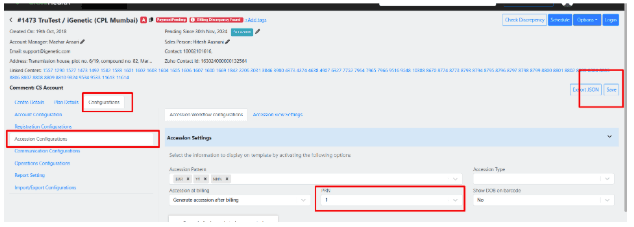

Support Dashboard: Go to Configuration -> Accession Configuration -> PRN. Select the mode and click Save.
Admin Settings: Enable required check boxes at https://livehealth.solutions/billSetting/ (e.g., Barcode Flag).

F. Developer: Building from Source

If you need to build a new .exe version:

Install dependencies: pip install -r requirements.txt.

Bundle the app:

pyinstaller --noconsole --onefile --icon=icon.ico __main__.py -n lh-print

2. Configuration Reference (`config.json`)

The config.json determines how patient data is parsed and which printer to use.

A. Printer Settings (`prn`)

Key	Type	Description
`printer_name`	String	The share name of the printer (e.g., `TSC`).
`machine_name`	String	The hostname of the computer where the printer is connected.
`barcode_template`	String	The filename of the template in `templates/` (e.g., `epl.prn`).
`group_by`	Integer	Number of labels per row (set to `2` or `3` for multi-label rolls).

B. App & Patient Settings

Key	Type	Description
`debug`	Integer	Set to `1` to enable verbose logging in `logs/`.
`character_limit`	Integer	Limit for splitting long patient names or test fields.
`fields_to_split`	Array	List of field names that should be split into multiple lines.
`parse_test_to_multiline`	Boolean	Automatically splits test names into `TESTS_LINE_1`, `2`, and `3`.

3. Template Customization

lh-print uses placeholders wrapped in curly braces (e.g., {SAMPLE_ID}).

Available Placeholders

{PATIENT_NAME}, {PATIENT_ID}
{SAMPLE_ID} (The Barcode value)
{AGE}, {GENDER}, {SAMPLE_TYPE}
{ACCESSION_DATETIME}, {ORG_CODE}, {LABNAME}
{TESTS_LINE_1}, {TESTS_LINE_2}, {TESTS_LINE_3} (If multiline is enabled)

Coordinate-based Alignment (EPL/TSPL)

In EPL templates, use the A command to position text:

X-Axis: A14,... -> Increase to move Right.
Y-Axis: A14,4,... -> Increase to move Down.

Execution Flow Diagram

The following sequence diagram illustrates how the system intercepts the browser trigger and coordinates the printing process.

Step-by-Step Workflow

1. Initialization (`config.py` -> `init_lhprint`)

When the application starts, it first ensures the local environment is ready:

Config Check: Verifies if config.json exists. If not, it creates a default one with prn mode enabled.
Directories: Creates logs/ and templates/ folders in the root directory (C:\livehealth\LHBarcodePrinter).
Templates: Populates the templates/ folder with default PRN files (EPL, ZPL, etc.).
Registry Registration: Generates lh-print.reg to ensure the lhprint:// protocol is associated with the executable.

2. Argument Interception (`main.py`)

The application receives the full URI from the OS (passed as the first command-line argument).

Example: lhprint://0^John+Doe^30Y^F^001^ORG^2024-04-20^S123^Blood^CBC^B456
The entry point decodes the URI and hands it to the BarcodePrinter orchestrator.

3. Data Parsing (`barcode_printer.py` -> `parse_args`)

The BarcodePrinter class determines the printing mode based on the first character:

Mode 0 (Single): Prints one barcode using the provided data.
Mode 1 (Bulk): String is split by $ to handle multiple sample entries.
Mode 2 (API Fetch): (Future extension) Fetches deep patient details via a secure API endpoint.

The data is then handed to the Patient model (patient.py), which splits the string by the ^ delimiter and maps values to attributes like patient_name, sample_id, and tests.

4. Template Hydration (`prn_printer.py` -> `generate_prn_template`)

The PRNPrinter executor takes over:

Loads the raw .prn file specified in config.json (e.g., epl.prn).
Performs string interpolation. Every attribute in the Patient object (formatted as uppercase keys) is used to replace placeholders in the template.
Example: {SAMPLE_ID} in the template becomes S123 in the output buffer.

5. Physical Print (`prn_printer.py` -> `print`)

The final hydrated buffer is written to a temporary file named barcode.prn. The utility then executes an OS-level move command:

move barcode.prn \\{machine_name}\{printer_name}

This bypasses traditional spoolers and sends the raw PRN data directly to the printer's internal interpreter.

Troubleshooting & Calibration

Shifting Barcode Alignment

If the printout is misaligned, you can adjust the coordinates directly in the .prn template (e.g., epl.prn).

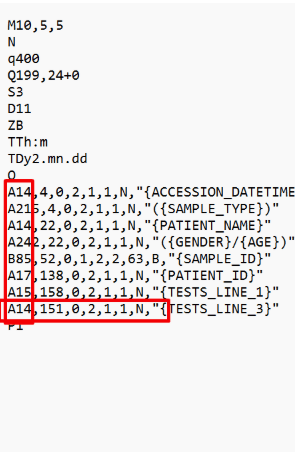

In EPL templates, the A command (e.g., A14,4,0,2,1,1,N,"{SAMPLE_ID}") controls positioning:

X-Axis (Horizontal): The first number after A. Increase this value (e.g., from 14 to 24) to shift the text to the right.
Y-Axis (Vertical): The second number. Increase this to shift the text down.

Referencing Available Fields

If you need to add more patient details to a label:

Open the latest log file in C:\livehealth\LHBarcodePrinter\logs.
Look for the list of parsed fields for a recent print job.
Use any of those field names as a placeholder (e.g., {PATIENT_AGE}) in your template.

If group_by is set to > 1 in config.json, the PRNPrinter uses the print_barcode_by_group logic. This is used for label rolls that have 2 or 3 labels across. The templates use numbered placeholders like {SAMPLE_ID_1}, {SAMPLE_ID_2} to handle this layout.
