Workflow Guide

This section explains how the Molecular feature is used in practice before diving into implementation details.

Important: Document Db should be enabled for this feature to work.

Prerequisite Master Data Setup

Before Molecular configuration is used, the lab needs prerequisite master data for genes, antibiotics, and organisms.

Where the user goes

1. Open the application sidebar.
2. Expand Drug Master / Panel Master.
3. Open Gene Master, Antibiotic Master, or Organism Master depending on the master data being configured.

What the controls do

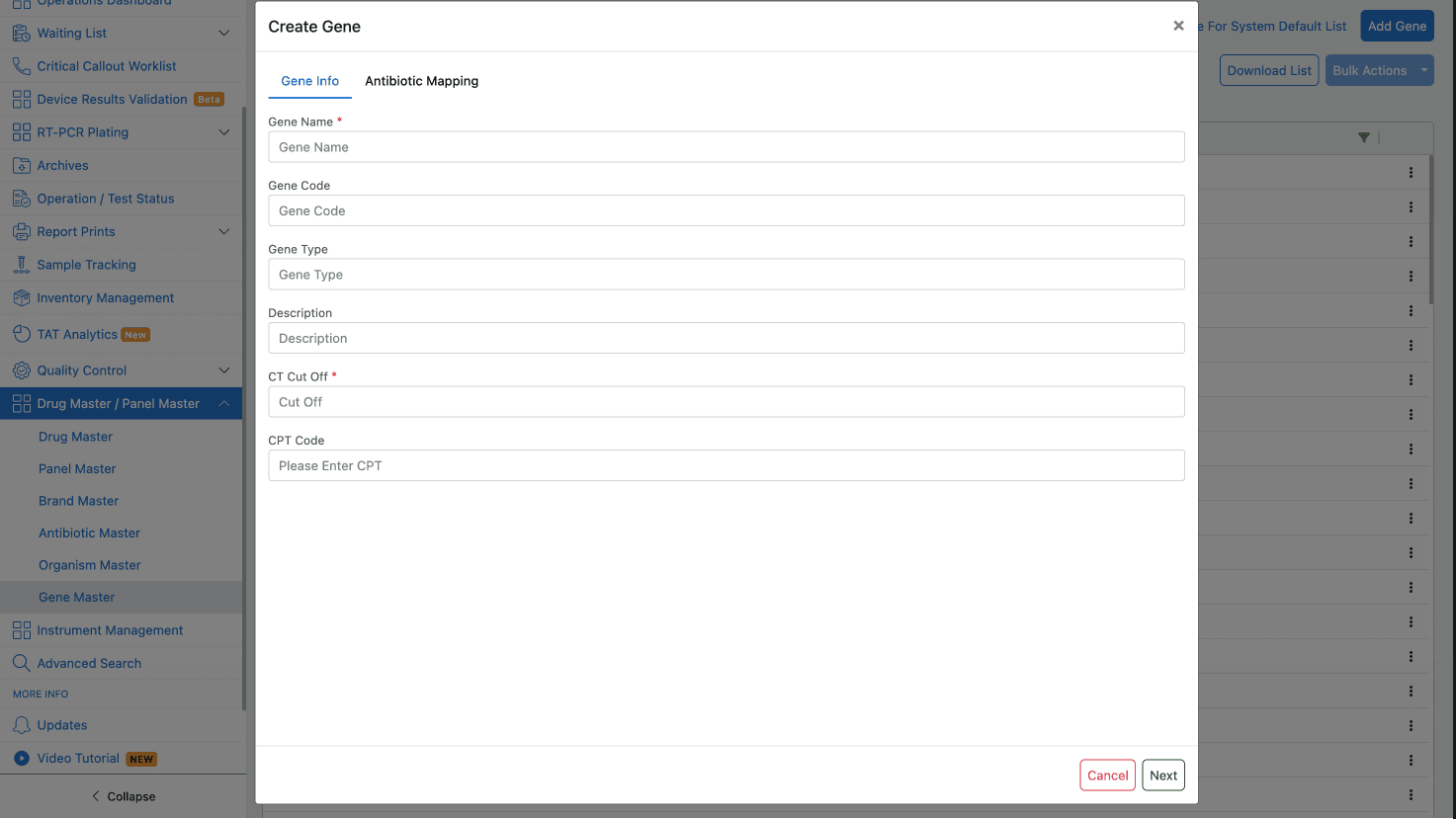

Gene Master

Gene Master is the base catalog for genetic markers. Each gene record represents a genetic target that may be detected in a biological sample.

The list view shows:

• gene name,
• gene code,
• description,
• type,
• status/action controls.

The screen supports tabs such as All Genes, System Defaults, Custom Genes, and Disabled Genes.

When creating or updating a gene, the user can map the gene to specific antibiotics to define antibiotic resistance mappings. This linkage is required for the Antibiotic Resistance report component to function correctly.

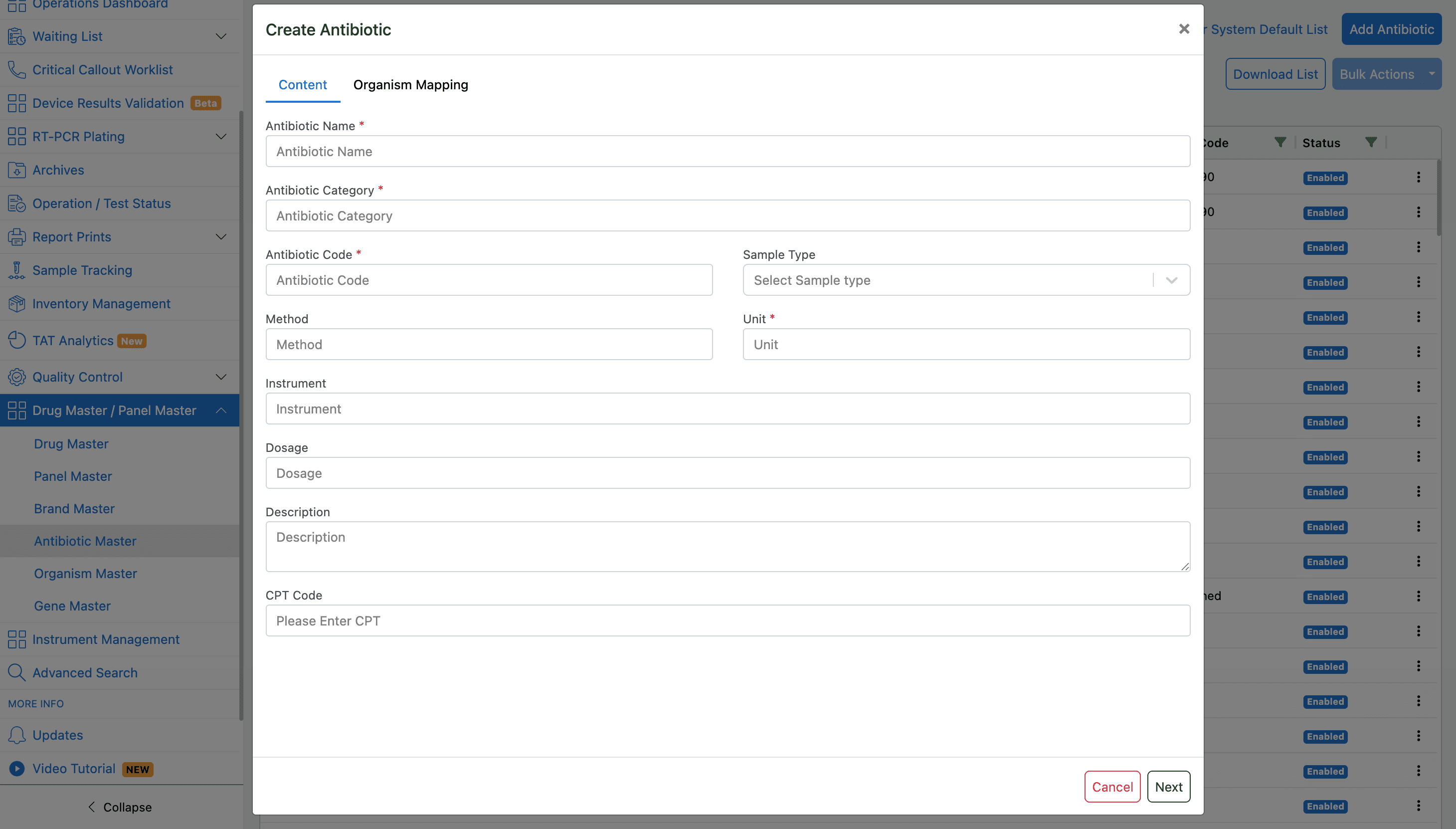

Antibiotic Master

Antibiotic Master defines the antimicrobial drugs used in susceptibility testing.

The list view shows:

• antibiotic name,
• sample type,
• antibiotic category,
• antibiotic code,
• status/action controls.

Antibiotics can be mapped to both genes (for resistance marker tracking) and organisms (for standard and molecular antibiograms).

When disabling an antibiotic, the system checks for any linked organisms and displays them in a warning modal to prevent accidental disruption of antibiogram mappings.

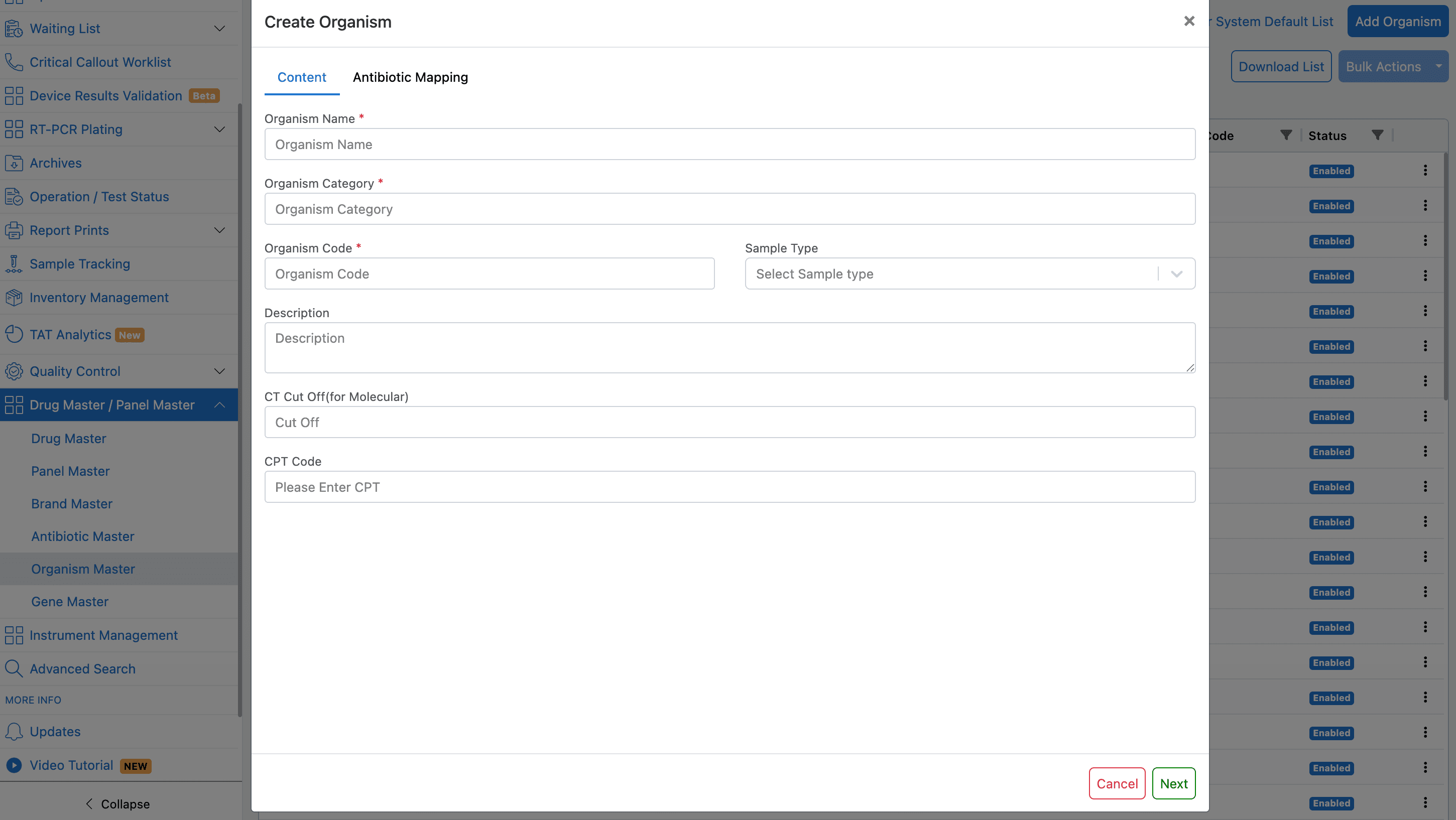

Organism Master

Organism Master defines the microorganisms that may be detected in a sample.

The list view shows:

• organism name,
• sample type,
• organism category,
• organism code,
• status/action controls.

When creating or updating an organism, the user can map antibiotics to the organism. There are two types of mappings managed here:

1. Standard Antibiogram mappings (stored in OrganismAntibiotics).
2. Molecular Mapping (stored in MolecularOrganismAntibiotics), which includes sequence ordering and an active state.

When disabling an organism, the system checks for linked antibiotics and displays them in a warning modal.

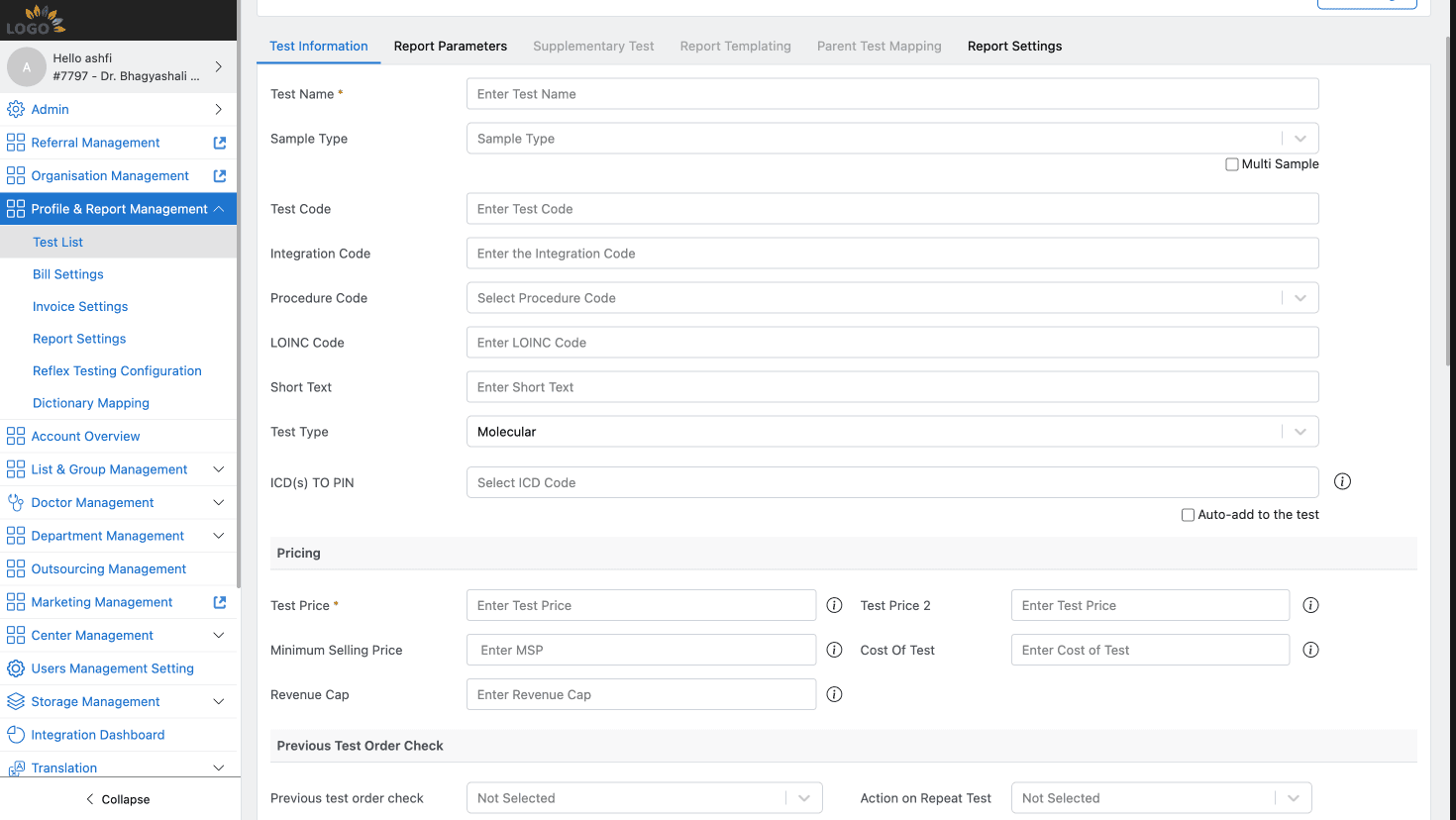

Molecular Report / Test Setup

After master data is configured, create a molecular report from the Test List.

Where the user goes

1. Open Profile & Report Management.
2. Open Test List.
3. Click Add New Test.
4. On Test Information, set Test Type to Molecular.
5. Save the test/report after report parameters are configured.

Selecting Molecular as the test type enables molecular-specific report components in the Report Parameters tab.

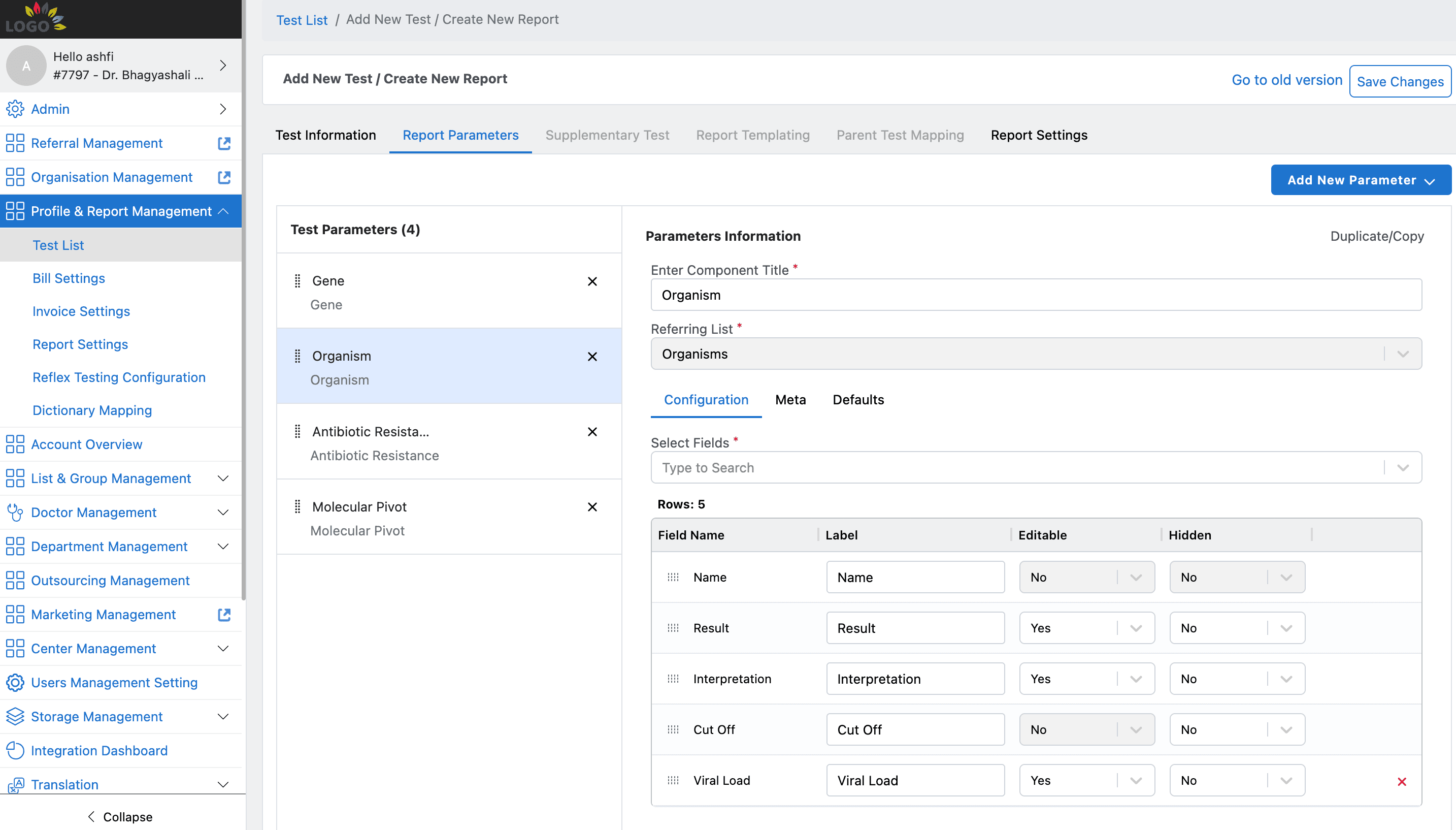

Molecular Report Components

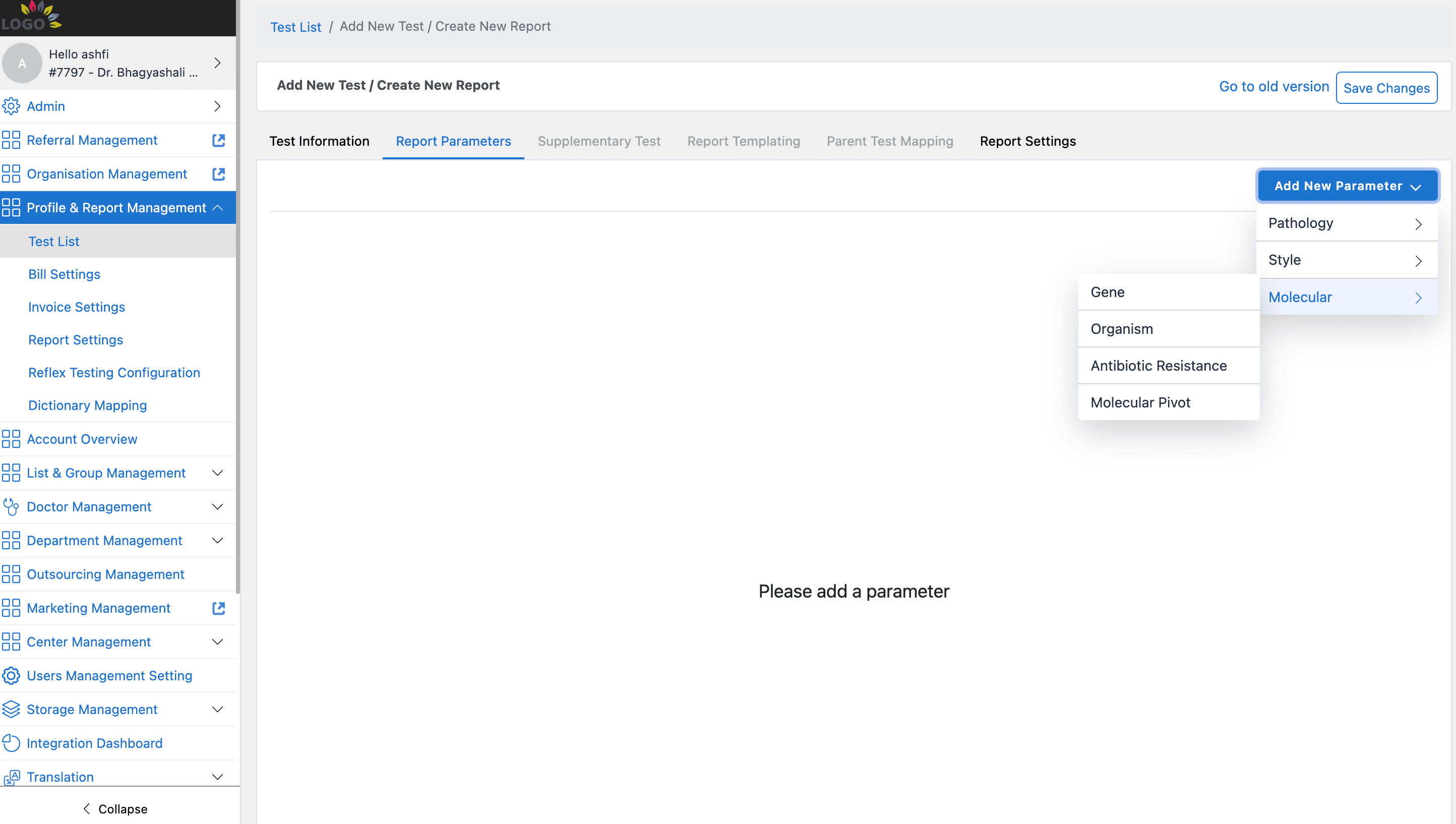

The Add New Parameter menu exposes molecular components:

• Gene
• Organism
• Antibiotic Resistance
• Molecular Pivot

Note: There are default columns like Name, Result, Interpretation, Cut off, Viral Load and more fields can be added by the Select fields dropdown.

Gene Component

The Gene component is used to detect genetic markers in the sample.

Key behavior:

• Includes default and customizable fields configured via the Select fields dropdown.
• The detection logic uses an inverted cut-off comparison: if the entered result is at or below the cut-off (or non-numeric), the gene is considered Detected. If it is above the cut-off, it is Not Detected.
• Detected rows are highlighted in the report entry UI.

Organism Component

The Organism component is used to identify microorganisms in the sample.

Key behavior:

• Includes default and customizable fields configured via the Select fields dropdown.
• Uses the same inverted detection logic as Gene (≤ cut_off = Detected).

Antibiotic Resistance Component

The Antibiotic Resistance component shows the susceptibility patterns for detected genes. It must be linked to a Gene component in the same report.

Key behavior:

• Displays an antibiogram-style grid.
• Features a Calculate button that automatically pulls in resistance data based on the linked Gene component's results and the master data mappings.
• Provides filter toggles: Show All Antibiotics, Only Resistant, Only Sensitive to refine the view during report entry.

Molecular Pivot Component

The Molecular Pivot component consolidates the findings from Antibiotic Resistance components into a summary table. It must be linked to an Antibiotic Resistance component.

Key behavior:

• Displays the antibiotic name alongside the configured fields.
• Respects Group By, Sort By, and Order By meta settings to format the summary output for the final report.

Primary User Workflow

1. User opens Drug Master / Panel Master.
2. User ensures required antibiotics are present in Antibiotic Master.
3. User creates genes in Gene Master and maps them to antibiotics to establish resistance rules.
4. User creates organisms in Organism Master and maps them to antibiotics for antibiogram workflows.
5. User opens Profile & Report Management > Test List.
6. User creates a new test and selects Molecular as the test type.
7. User adds molecular report components: Gene, Organism, Antibiotic Resistance, and Molecular Pivot.
8. User configures the fields, metadata, and default values for the components.
9. Backend validates and persists the master data and report configuration.
10. The configured molecular parameters become available for billing and report entry, where the system will automatically handle detection logic and resistance calculation.
